otter数据同步搭建

1.下载所需包

otter : https://github.com/alibaba/otter/releases

下载manager.deployer-4.2.18.tar.gz,node.deployer-4.2.18.tar.gz

aria2c :https://github.com/aria2/aria2/releases

docker 搭建zookeeper (非docker 需要下载)

2.数据库配置修改my.cnf

secure-file-priv= NULL
#log_bin

#开启binlog

log-bin = mysql-bin

#选择row模式

binlog-format = ROW

#服务Id 不能重复

server_id = 1

3数据库初始化执行以下脚本创建otter库

https://github.com/alibaba/otter/blob/master/manager/deployer/src/main/resources/sql/otter-manager-schema.sql

4.jdk确认安装目前支持jdk8

5安装zookeeper

docker pull zookeeper:3.4.14

 docker run -d --restart=always --log-driver json-file --log-opt max-size=100m --log-opt max-file=2 --name zookeeper -p 2181:2181 -v /etc/localtime:/etc/localtime zookeeper

6.安装otter manager

mkdir /opt/otter-manager –p

tar -zxf manager.deployer-4.2.18.tar.gz -C /opt/otter-manager

cd /opt/otter-manager/conf

7.修改manager配置文件

## otter manager domain name 修改ip
otter.domainName = 10.6.116.199

## otter manager http port 修改管理端口

otter.port = 8080

## jetty web config xml

otter.jetty = jetty.xml

## otter manager database config 修改数据库地址

otter.database.driver.class.name = com.mysql.jdbc.Driver

otter.database.driver.url = jdbc:mysql://10.6.116.199:3390/otter?useSSL=false

otter.database.driver.username = root

otter.database.driver.password = password

## otter communication port 修改node链接管理端端口

otter.communication.manager.port = 1099

## otter communication payload size (default = 8388608)

otter.communication.payload = 8388608

## otter communication pool size

otter.communication.pool.size = 10

## default zookeeper address 修改zk地址

otter.zookeeper.cluster.default = 127.0.0.1:2181

## default zookeeper sesstion timeout = 60s

otter.zookeeper.sessionTimeout = 60000

## otter arbitrate connect manager config

otter.manager.address = ${otter.domainName}:${otter.communication.manager.port}

## should run in product mode , true/false

otter.manager.productionMode = true

## self-monitor enable or disable

otter.manager.monitor.self.enable = true

## self-montir interval , default 120s

otter.manager.monitor.self.interval = 120

## auto-recovery paused enable or disable

otter.manager.monitor.recovery.paused = true

# manager email user config

otter.manager.monitor.email.host = smtp.gmail.com

otter.manager.monitor.email.username =

otter.manager.monitor.email.password =

otter.manager.monitor.email.stmp.port = 465

8.启动manager

/opt/otter-manager/bin/startup.sh

查看日志

tail -f /opt/otter-manager/logs/manager.log

访问管理端用户名/密码:admin/admin

http://10.6.116.199:8080/

9.安装node

mkdir /opt/otter-node –p
tar -zxf node.deployer-4.2.18.tar.gz -C /opt/otter-node

10.安装aria2

 xz -d aria2-1.36.0.tar.xz

 tar -xf aria2-1.36.0.tar

 cd aria2-1.36.0/

 ./configure

 make check

 make

 make install

 aria2c -v

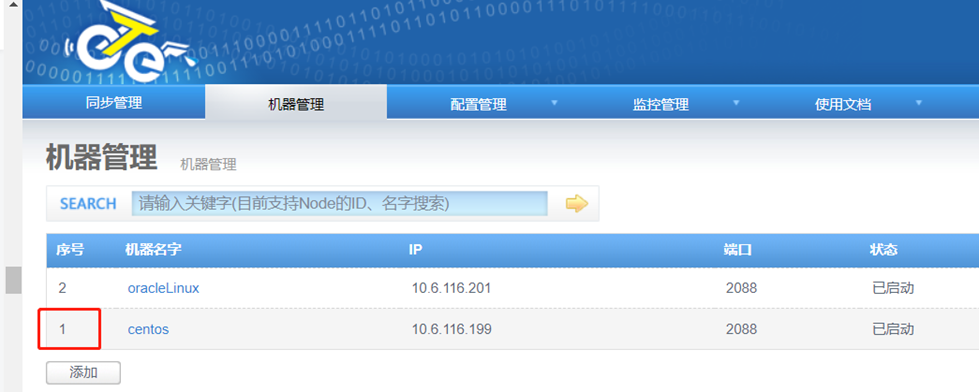

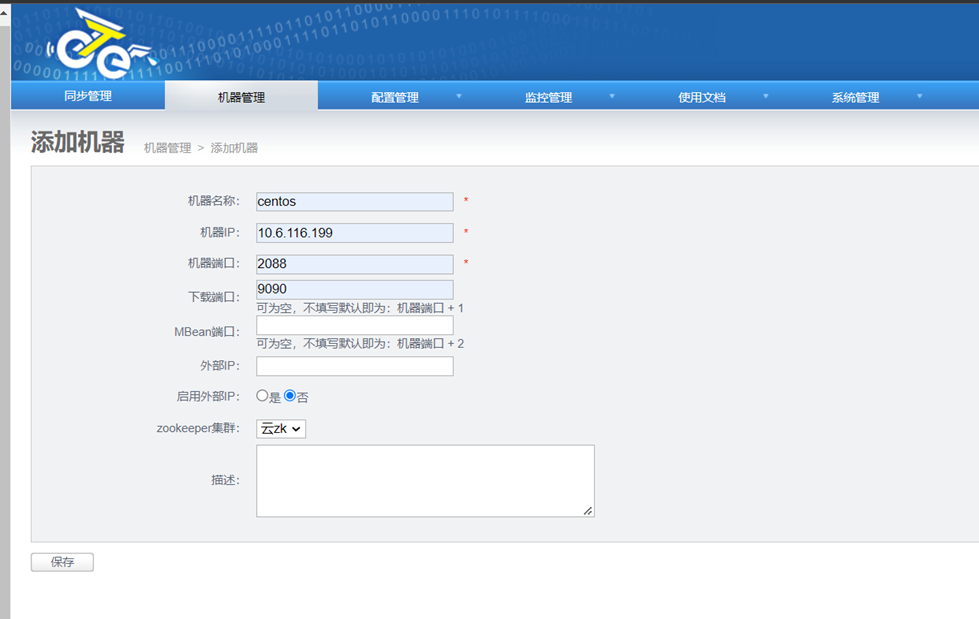

11. 在manager 配置node

http://10.6.116.199:8080/node_list.htm

获得inode id

写入nodeid

echo 1 > /opt/otter-node/conf/nid

12.修改node 配置

# otter node root dir
otter.nodeHome = ${user.dir}/../

## otter node dir

otter.htdocs.dir = ${otter.nodeHome}/htdocs

otter.download.dir = ${otter.nodeHome}/download

otter.extend.dir= ${otter.nodeHome}/extend

## default zookeeper sesstion timeout = 60s

otter.zookeeper.sessionTimeout = 60000

## otter communication payload size (default = 8388608)

otter.communication.payload = 8388608

## otter communication pool size

otter.communication.pool.size = 10

## otter arbitrate & node connect manager config 修改这里改为配置的manager地址

otter.manager.address = 10.6.116.199:1099

13.启动node
